CTP LCT Pro L type tube heaters
Products - CTP - CT Pro L type tube heaters
DESIGN and PERFORMANCEIt distinguishes itself from its competitors with its 92% burner and 60-68% luminous efficiency. Aluminized reflectors are used for high luminous efficiency.
OPTIONFor ease of use, remote control and double step options are offered. It can be assembled as L / U type according to the project.
LONG LIFEAluminized tubes allow long years of trouble- free operation without the need for a special maintenance program.

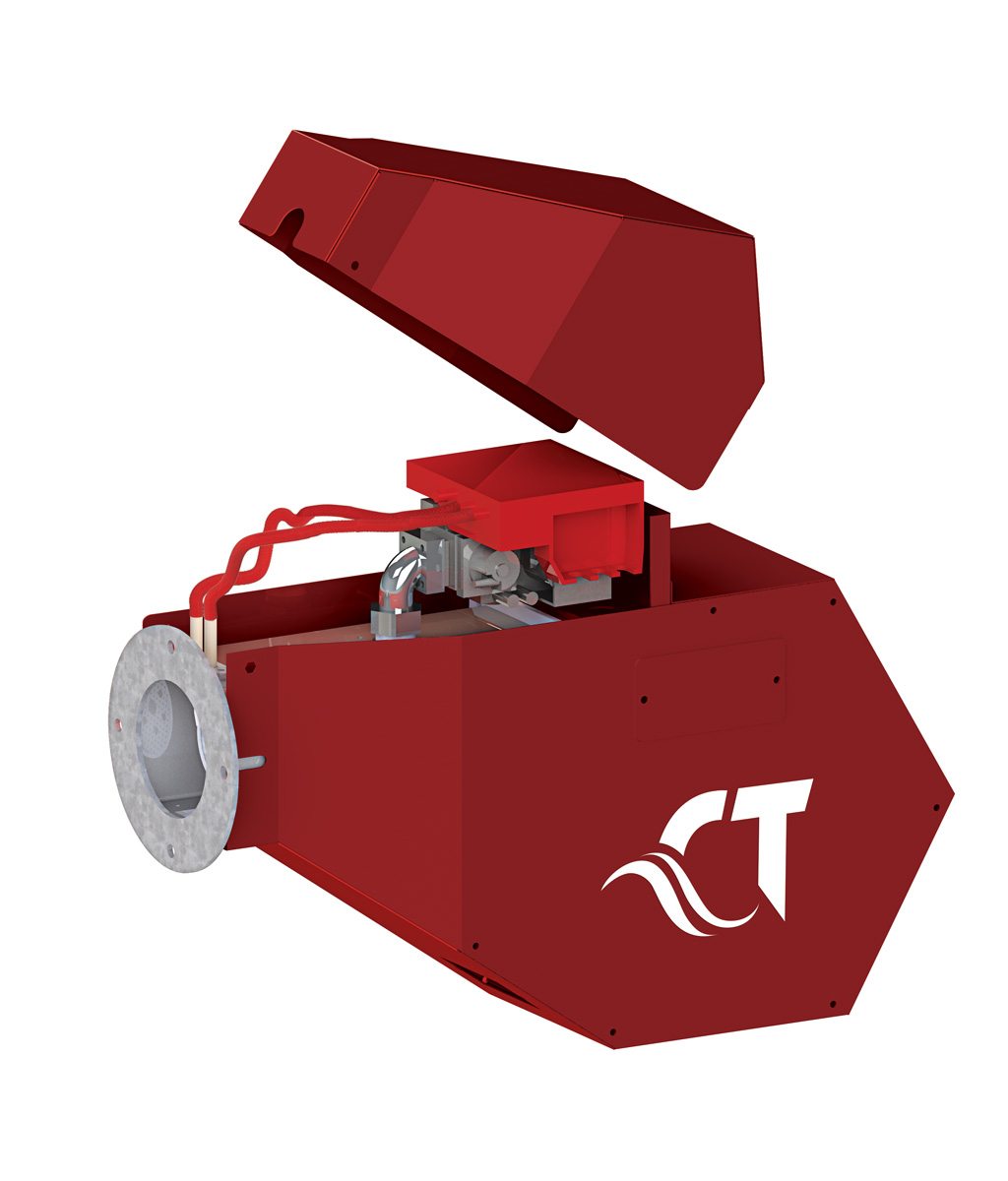

Easy Use and InstallationIt provides ease of installation with its innovative compact burner design and flanged pipe structure.
Two-stage burning systemWith the low or high step burning system, the desired temperature comfort can be provided easily according to the temperature of the air.

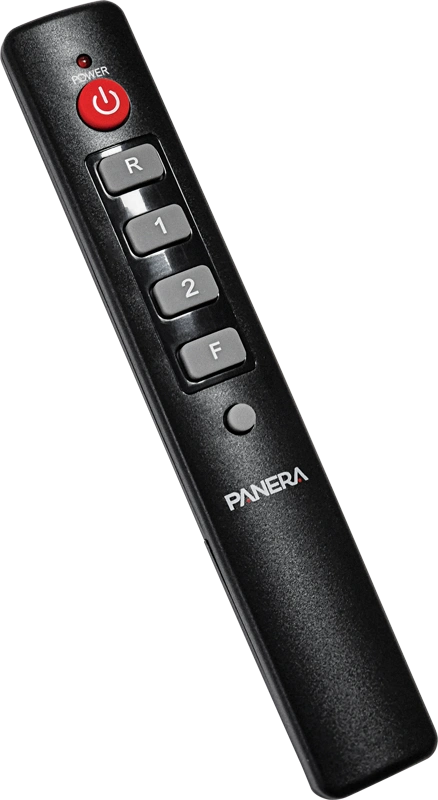

Remote Control, OptionalEasier to use with remote control, optional

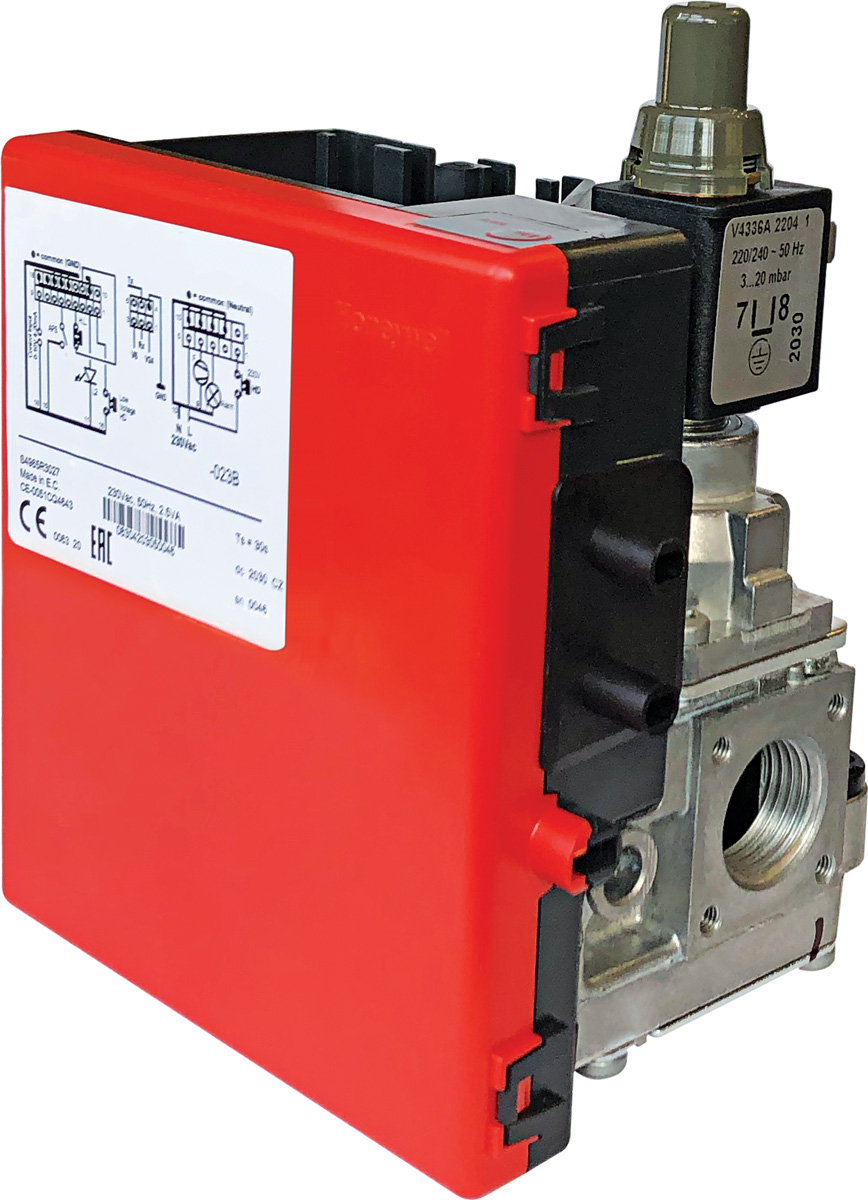

SafetyHoneywell ignition card and gas valve are used as a set.
|Technical Features||CTP L|
|Model||20 L||30 L||40 L||50 L||60 L||70 L|
|Device Capacity (Kw)||20,3||30,5||40,7||50,1||60,5||69,8|
|Natural Gas Consumption (Nm3/H)||2,12||3,18||4,25||5,23||6,31||7,27|
|Lpg Consumption (Kg/H)||1,56||2,35||3,13||3,85||4,65||5,36|
|Recommended Mounting Height (mm)||3.4||3.5||4.9||5.5||6.4||6.8|
|Exhaust/Air Connection (mm)||Ø100 (up to 6 m long)|
|Electricity Consumption (W)||90||90||90||105||105||105|
|Gas Inlet Pressure (Mbar) - Natural Gas||Min: 20 mbar - Max: 55 mbar|
|Gas Inlet Pressure (Mbar) - Lpg||Min: 33 mbar - Max: 55 mbar|
|Electrical Connection||230 V / 50 Hz - Monofaze|
|Ignition and Control||Ignition and ionization electrodes control is controlled by the panel.|
|Device Length (Recommended) (m)||6||9||12||18||21||24|
|Device Weight (kg)||60/82||60/82||85/115||105/150||145/210||155/225|
|CE Certificate||CE - 2422-GAR-7022/07|
|Combustion Efficiency (Burner)||%92-93|
|Radiation Efficiency (Reflector)||%60-68|
